Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber

Name: Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber
Brand: BOTO
Price: 1 USD

Brand Name : BOTO

Model Number : BT-TH-100

Certification : CE ISO

Place of Origin : China

MOQ : 1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 150 Set/Sets per Quarter

Delivery Time : 5-25 days

Packaging Details : wooden case

Internal dimension (mm) : 400*500*500

Overall dimension (mm) : 860*1050*1620

Temperature range : -20℃ ~+150 ℃

Low type : Ⅰ: -40℃ Ⅱ:-70℃

Humidity range : 20% ~ 98% RH

Temperature fluctuations : ± 0.5 ℃

Temperature deviation : ± 2.0 ℃

Humidity deviation : ± 2.5% RH

Heating rate : 3 ℃ / min

Cooling rate : 1 ℃ / min

Temperature Sensor : PTR Platinum Resistance PT100Ω/MV A-class

Temperature Resolution : ± 0.001 ℃

Humidity sensor : Dry and wet bulb sensor

Power Supply : AC220V 50HZ

Environmental conditional : 5℃~+40 ℃ ≤85% RH

Contact Now

Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber

Product Description

Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber

Advantage of Constant Temperature Compact Humidity Chamber

● One machine, multiple functions
 ● Long time 85 °C / 85 % RH test
 ● Cold resistance test,
 ● Thermal cycle test,
 ● High and low temperature test,
 ● Storage condition,
 ● Calibration function.
 ● Wide temperature ranges and volume selection.
 ● Programmable touch screen controller.

Specifications of Constant Temperature Compact Humidity Chamber

Product Name	Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber
Model	BT-TH-100	BT-TH-225
Internal dimension (mm)	400500500	500600750
Overall dimension (mm)	86010501620	96011501860
Temperature range	-20℃ ~+150 ℃
Low type	Ⅰ: -40℃ Ⅱ:-70℃
Humidity range	20% ~ 98% RH
Temperature fluctuations	± 0.5 ℃
Temperature deviation	± 2.0 ℃
Humidity deviation	± 2.5% RH
Heating rate	3 ℃ / min
Cooling rate	1 ℃ / min
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Temperature Resolution	± 0.001 ℃
Humidity sensor	Dry and wet bulb sensor
Power Supply	AC220V 50HZ
Environmental conditional	5℃~+40 ℃ ≤85% RH

Detail of Constant Temperature Compact Humidity Chamber

Controlled Stability Laboratory Constant Temperature Compact Humidity Chamber

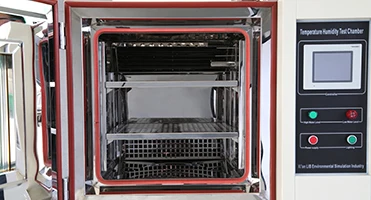

Test Area


●2pcs 2.5mm SUS304 stainless steel shelf; ●Each shelf loads 50KGS;
●Specimen shelf height can be adjustable;
●Specimen shelf can be
 remove;
●Punching design Suitable for test pieces with different size

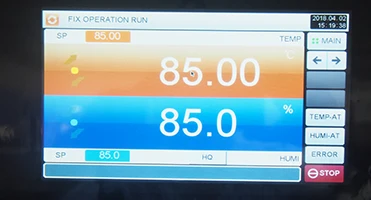

Control Panel

●Programmable color touch screen type 120 programs,
 ●99 steps perprogram
 ●RS232 for PC link
 ●More option function:Multi-language display, PC link,USB, App

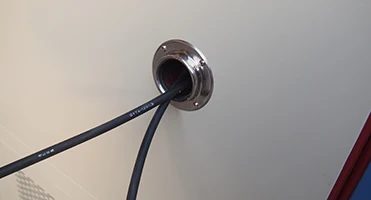

Cable Hole

●Internal diameters 50mm,125mm or custom; Rubber sealing;
●Stainless steel cover;
 ●Supply power to workroom's specimen, to better finish testing Beautiful

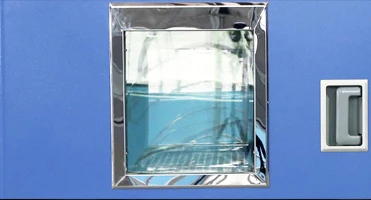

Large Viewing Window

●Interior lighting
●Window coated with conducting film to protect it from frost.
 ●Size is 250*300mm W*H.
 ●Observe the sample changes more clearly
